ASME B16.9 Butt Weld Elbows Dimensions

【Summary Description】

【概要描述】

Details

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

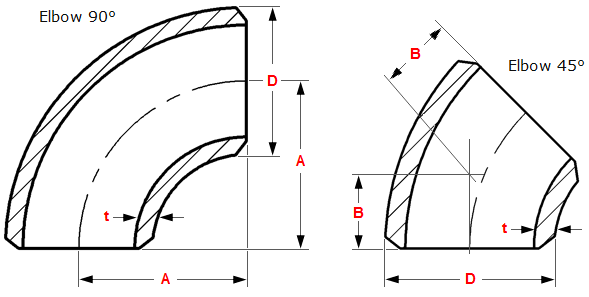

DIMENSIONAL TOLERANCES OF BUTT WELD ELBOWS - 45° AND 90° - LR AND 3D - ASME B16.9 -

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 - 0.8	1.6	1.6	+ 2.4 - 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Center to End LR (A/B)	2	2	2	2
Center to End 3D (A/B)	3	3	3	3
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 - 3.2	+ 6.4 - 4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Center to End LR (A/B)	2	2	3	5
Center to End 3D (A/B)	3	3	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
