PRODUCTS CENTER
Products Are Used In Petroleum, Chemical, Marine, Electric Power, Thermal, Natural Gas, Urban, Steel And Other Fields

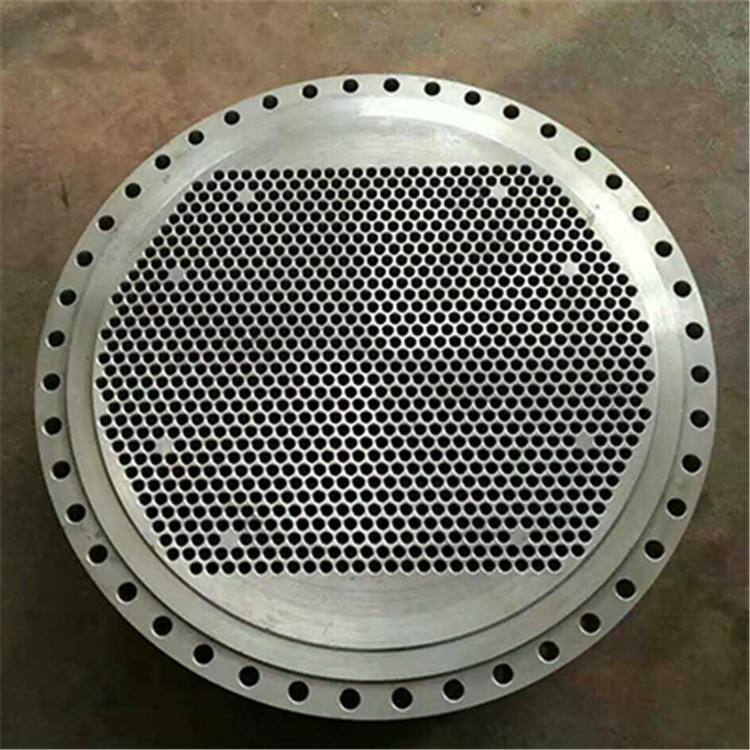

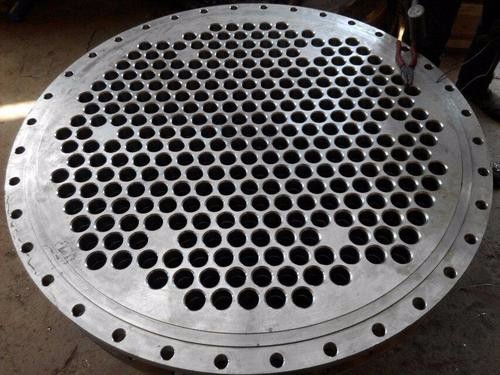

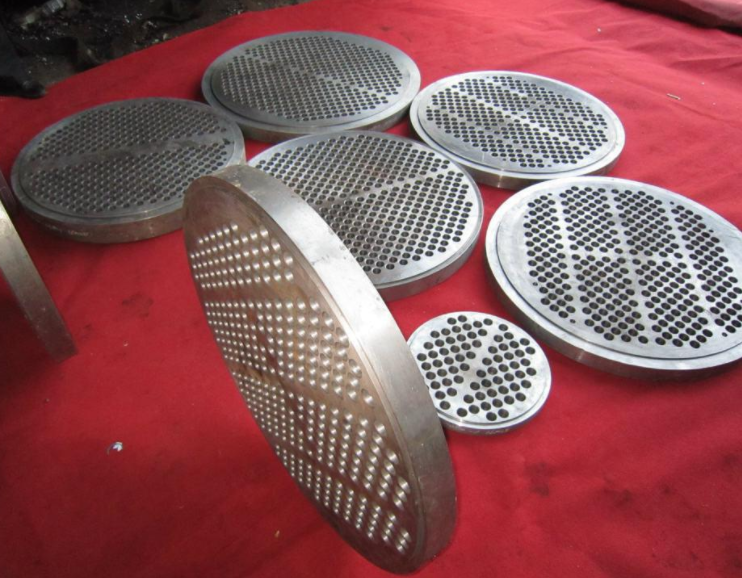

Flanged Tubesheet

所屬分類
inquiry
1
Product description

Production Specification:According to PED4.3 instructions and the design of《Safety technical supervision rules for fixed pressure vessels》and the requirements of the industry standard.

Material:Carbon steel,Stainless Steel,Duplex Stainless Steel,Copper,Clad Material, Titanium.

Machining Range:Outside Diameter Max2500mm,Thickness Max500mm.

Tube Hole Details:Positioning Precision Max0.01mm, hole diameter Min Tolerance 0.01mm, Min roughness Ra0.6 in the hole, accept expanded tube hole groove in the hole.

Main Process:Forging,Overlay Welding,Explosion,Normalizing,Solid Solution,Turning, Milling,Drilling,Fraising,Boring,Boring Grooves.

Main Detection:Chemical Composition,Mechanical Properties,PT,UT,Intercrystalline Corrosion,Clad Strength,Hardness,Size,Roughness.

Main Markets:South Korea, Iran, Australia, Eastern Europe, Southern Europe, Indonesia.

Flanged Tubesheet
