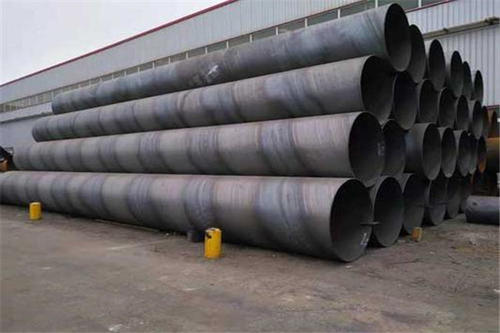

SSAW PIPE

Spiral submerged arc welding(SSAW) is its forward direction and forming tube centerline hose reel molding angle (adjustable), side molding edge welding and weld them into a spiral.

Packing:  Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield, strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Mill Test Certificate: EN 10204/3.1B

Third party inspection: SGS, BV, Lloyds etc.

We have a team of experienced professionals with years of experience in manufacturing.

Spiral Submerged-arc Welded Quality Assurance

Spiral welded pipe production by submerged arc method is based on using tandem welding technique for joining inside and outside coil edges, which have been trimmed and beveled by carbide milling for high quality weld structure.

Welding of hot rolled steel coils takes spiral form after passing through preforming and forming rolls. Excellent exterior weld quality at high production speeds is provided by double submerged arc welding process. Manufactured pipes are cut to the desired lengths at the exit of the pipe machine. Pipe ends are beveled by means of carbide machining for accurate on-site welding.

After the pipe is conveyed to hydrostatic testing and off-line ultrasonic testing and/or real time X-ray inspection, the pipe will be subject to final inspection for the compliance to customer requirements.
